Sale!
TOMZN 8pcs Din Rail 230V Adjustable Over Voltage And Under Voltage Protective Device Protector Relay TOVPD1-63-EC
TOMZN 8pcs Din Rail 230V Adjustable Over Voltage And Under Voltage Protective Device Protector Relay TOVPD1-63-EC - Image 2
TOMZN 8pcs Din Rail 230V Adjustable Over Voltage And Under Voltage Protective Device Protector Relay TOVPD1-63-EC - Image 3
TOMZN 8pcs Din Rail 230V Adjustable Over Voltage And Under Voltage Protective Device Protector Relay TOVPD1-63-EC - Image 4
TOMZN 8pcs Din Rail 230V Adjustable Over Voltage And Under Voltage Protective Device Protector Relay TOVPD1-63-EC - Image 5
TOMZN 8pcs Din Rail 230V Adjustable Over Voltage And Under Voltage Protective Device Protector Relay TOVPD1-63-EC - Image 6
TOMZN 8pcs Din Rail 230V Adjustable Over Voltage And Under Voltage Protective Device Protector Relay TOVPD1-63-EC - Image 7

TOMZN 8pcs Din Rail 230V Adjustable Over Voltage And Under Voltage Protective Device Protector Relay TOVPD1-63-EC

TOMZN TOVPD1-63-EC is a DIN-rail mounted voltage protection relay designed to safeguard electrical systems from over-voltage, under-voltage, and over-current faults. It continuously monitors voltage and current, and when abnormal conditions occur, it automatically disconnects the power to protect appliances and wiring. With adjustable protection settings, real-time voltage/current display, and auto-recovery function, it provides flexible and reliable protection for homes, distribution panels, and industrial equipment, ensuring stable and safe operation.

👉 Buy here: https://s.click.aliexpress.com/e/_c3Jt876d

Price range: $36.12 through $42.48

  • Model: TOVPD1‑63‑EC
  • Power supply: 230 VAC, 50/60 Hz

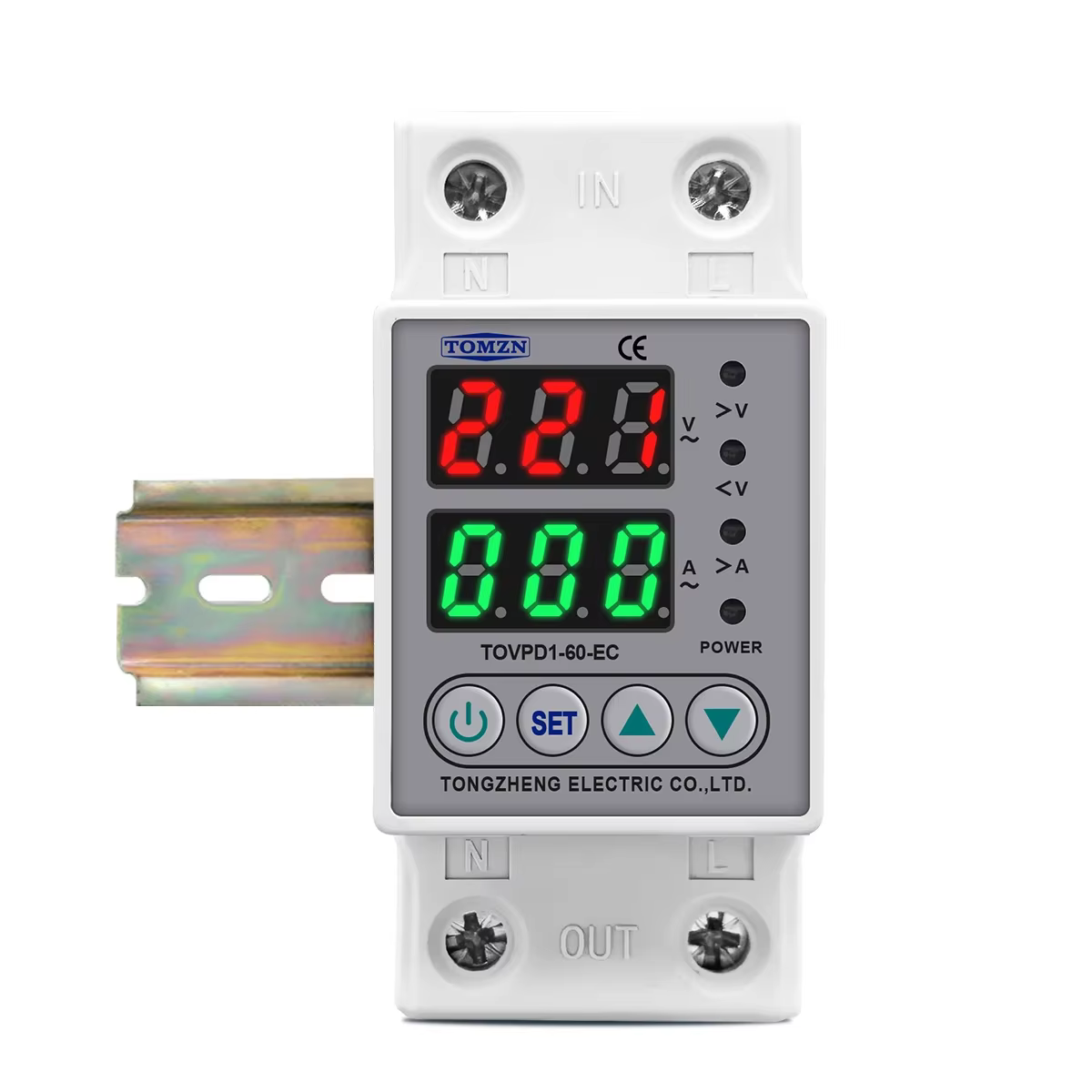

  • Installation: 35 mm DIN rail mount
  • Functions:
    • Over-voltage protection
    • Under-voltage protection
    • Over-current protection
    • Automatic recovery after fault

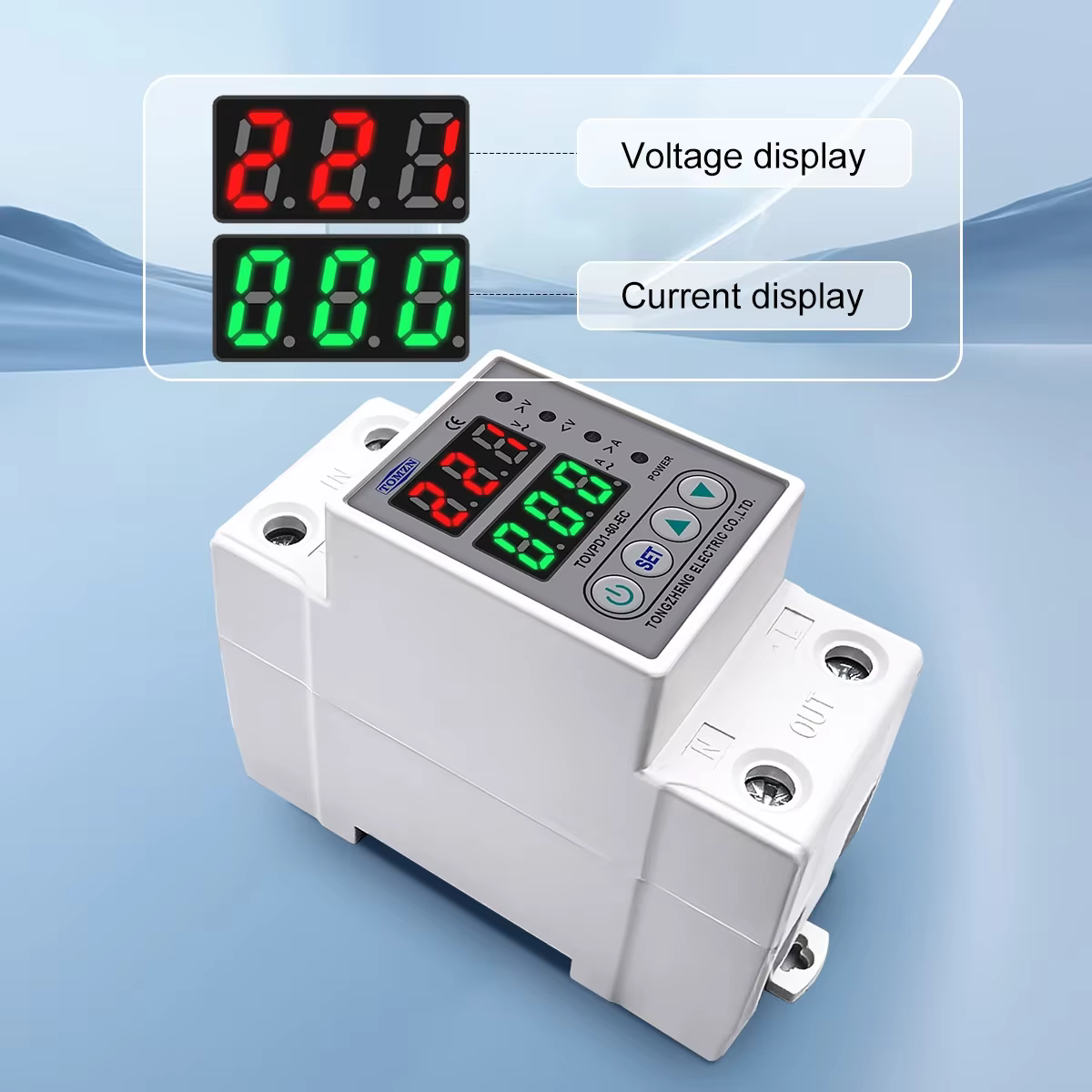

    • Voltage display (real‑time measurement)
    • Current display (real‑time measurement)
  • Current range (adjustable): 1 – 63 A (default 63 A)
  • Over‑voltage:
    • Adjustable protection value: 230 V — 300 V ~ OFF (default 270 V)
    • Recovery voltage range: 225 V — 295 V (default 250 V)
    • Protection trigger time: 0.1 s — 30 s (default 0.5 s)
    • Recovery delay time: 1 s — 500 s (default 30 s)
  • Under‑voltage:
    • Adjustable protection value: 140 V — 210 V ~ OFF (default 170 V)
    • Recovery voltage range: 145 V — 215 V (default 190 V)
    • Protection trigger time: 0.1 s — 30 s (default 0.5 s)
    • Recovery delay time: 1 s — 500 s (default 30 s)
  • Over‑current protection:
    • Adjustable range: 1 – 63 A (default 40 A)
    • Trip trigger time: 0.1 s — 30 s (default 0.5 s)
    • Recovery delay time: 1 s — 500 s (default 30 s)
  • Power‑on delay time: 1 s — 500 s (default 10 s)
  • Power consumption: < 2 W
  • Mechanical life: ~100,000 operations
